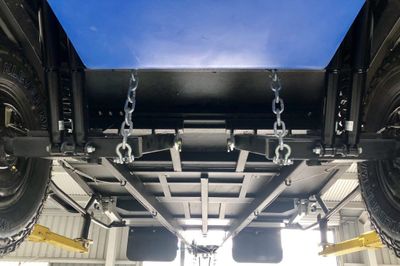

Galvanised Chassis w/ Triple Drawbar
One of the only triple draw bar offerings on the market hot dipped for strength and rigidity. Water based, high opacity coating that dries to form a protective coating against rocks, stones and other debris that a vehicle may be hit by on the road. Forming an elasticised coating, anti-chip is perfect for the lower body sections of a vehicle.

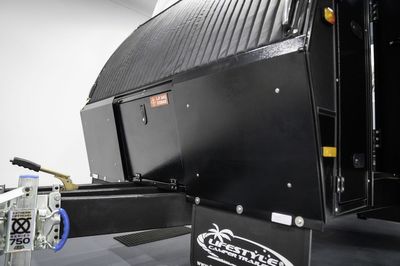

Stone Guard Anti-Chip Protection
Chassis is undercoated with primer, then sealed and coated with stone guard anti-chip protection; the powder coated aluminium propellor plate protects the camper from stone chips and road damage.
Independent Coil Spring Suspension w/ Shock Absorbers
Steel springs accompany four independent arm shock absorbers (dual shocks each side) for a smooth ride and reliable off-road ability.
12” Electric Brakes
Quality electric brakes with heavy duty off road bearings.

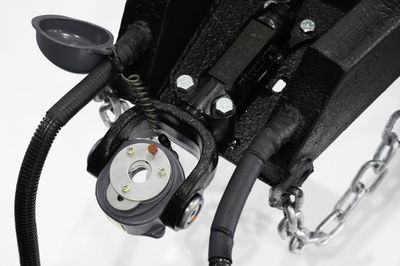

Cruisemaster D035 Off Road Hitch
Suitable for use with a standard 50mm ball. Incorporates extreme vertical and horizontal articulation as well as a quick & easy hitching design that requires no pin or hole alignment.
Swing Up Jockey Wheel
ALKO 10” zinc plated swing jockey wheel with 400kg max static load capacity, 3 bolt swivel bracket & handle, and 250mm metal wheel with solid tyre. Adjustable height: 630mm - 880mm Extension: 250mm

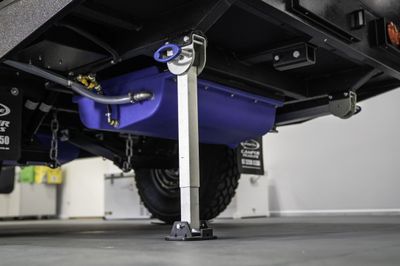

Drop Down Stabiliser Legs
4 x 510mm-740mm adjustable leg, ideal for all ground densities including soft. Winding handle included. Tip: You can speed up your set up with a 19mm socket and drill/driver.

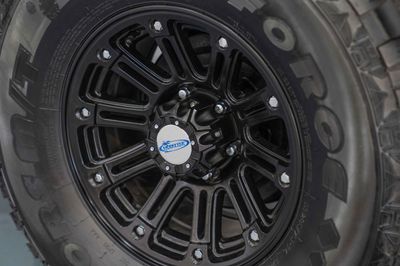

16” Mud Terrain Tyres and Alloy Wheels
Load bearing and speed rated off road 285/75 x16” mud terrain tyres fitted to 16” alloy mag wheels.

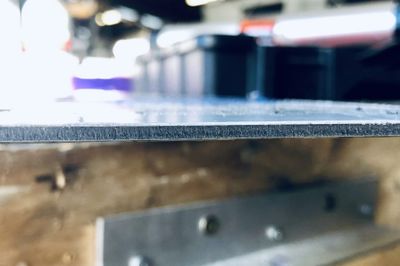

Lightweight Composite Aluminium Body
The composite aluminium side panelling has a thermoplastic polyethylene core sandwiched between two outer flat aluminium panels ensuring a strong yet lightweight body with optimal complete insulation.
Rear Mounted Spare Wheel
Additional 285/75 x 16" mud terrain tyre fitted to 16" alloy wheel affixed to the rear of your camper with room to add an additional spare.
Tow Bar Receiver
Suitable for rear recovery or the addition of a bike rack Length: 205mm Internal measurement: 50mm x 50mm

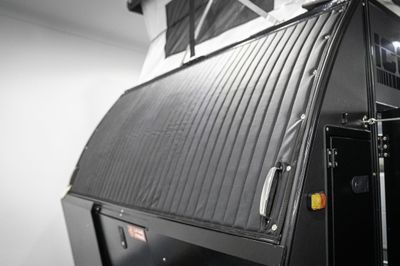

Padded Front Cover Protection
A stylish padded front cover fitted to the front wall of the camper to protect from dents and scratches.

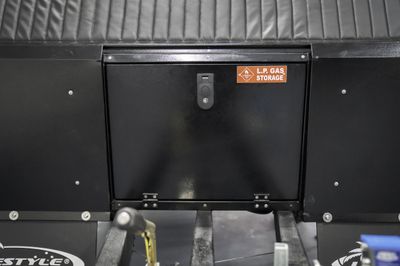

Gas Bottle Storage
2 x brackets for secure transportation of 2 x 4kg gas bottles are mounted behind the stone guard. Manual changeover regulator means bottles can remain in situ. Note: Gas bottles not included
Triple Lock Security Door w/ Fly Screen
Versatile solid camper door with separate fly screen door. Privacy screen attached which can be rolled up or down. Triple lock system provides extra security and safety.

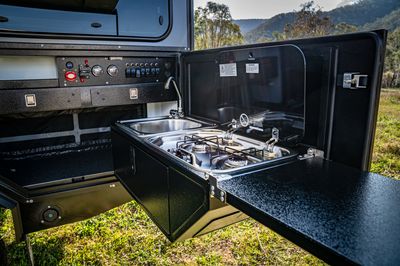

Swing Out Kitchen
Swing out kitchen with bench extension features flush mounted 2-burner stove top with stainless steel 17L sink and incorporated mixer tap. Under sink cavity offers an additional 50L of storage. Secured on heavy duty latch-able slides. Stove: 480w × 370d × 90h Burner sizes: 52mm and 62mm.

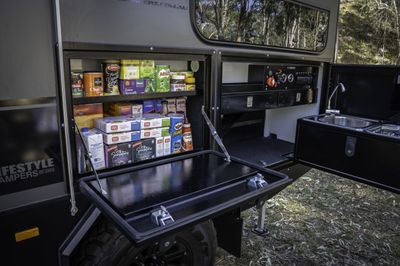

Large Pantry Storage
150L storage cupboard for all your pantry needs plus 2 x drawers, additional storage nooks and handy bench space on the drop down hatch door.
Fully insulated spring loaded pop-top aluminium roof. Fibreglass composite roof piece is purpose built utilising a single piece of roofing to reinforce the strength and rigidity of the camper, while gas struts assist in the lift/close of the roof. Vinyl sock encloses the space to keep you dry, with 6 x screened windows to provide airflow.
Wind Out Awning
Wind out awning assists in a quick and easy set up. No bags, zips or clips - simply wind out the awning, place and adjust the pole legs and secure them. Ropes/pegs included.

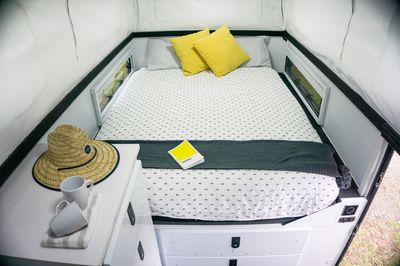

Queen Size Innerspring Mattress
A heavy duty spring system and extra heavy duty edge supports to ensure the longevity of the mattress and maximise the sleeping space. High quality construction covered by a quilted cover makes for a top quality sleep, every time.

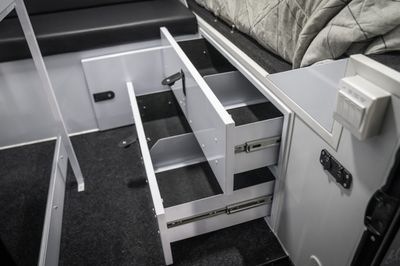

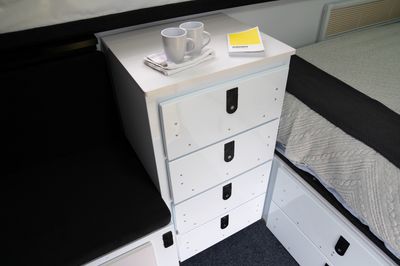

Large Internal Drawers
2 x large drawers with dividers (105L total capacity) installed with heavy duty drawer runners and individual drawer locking mechanisms to ensure your belongings remain secure while in motion.

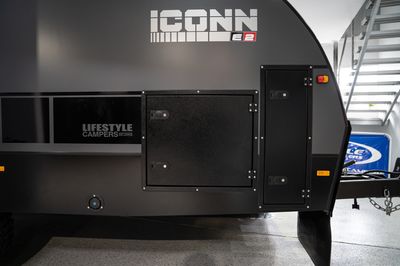

Trailer Storage Tub
The under bed storage (over 1100L capacity) can be accessed from inside via the gas strut assisted bed deck or from the 2 x driver’s side large hatches.

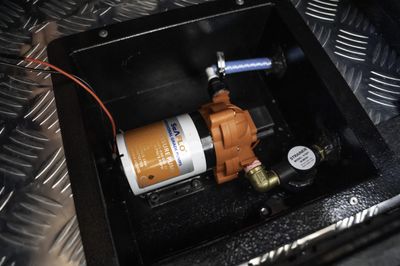

12V High Flow Water Pump w/ Tap
Plumbed directly to the kitchen sink, enjoy reliable pressure at the tap. Motor: permanent magnet, ball bearing, pump design: four chamber diaphragm design, self-priming and able to run dry without damage, and includes bypass valve which greatly reduces pulsating water and pressure switch chatter.
Quick Release Water Outlet
Enables you to feed water to your hot water system directly from the pump in your kitchen.
2 x 80L Poly Water Tanks
Plastic, tough, non toxic standard fresh water tanks.

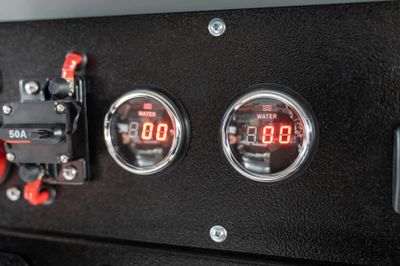

Electric Water Gauge
Track the percentage capacity of your tanks via 2 x electric LED water gauges from the control panel inside the swing out kitchen cavity.
Rigid moulded plastic housing for strength and durability, and LED powered for longevity and unfailing brightness.

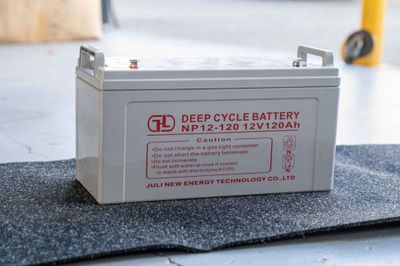

120AMP/h Deep Cycle Battery
Optimised lead calcium plates deliver high power density and consistent performance and the special grid alloy and paste formula reduce gassing and self-discharge. Room for an additional battery.
Anderson Plug to Drawbar
Charge your trailer directly from your car when in motion. Heavy duty 50AMP connector housing with copper terminals.

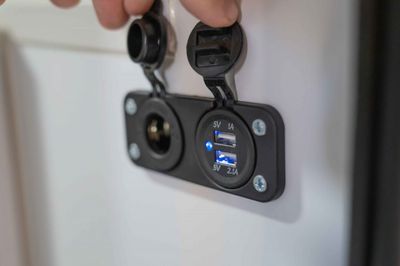

4 x 12V Outlets & 3 x Double USB Outlets
Features dust proof cover and heavy-duty construction with AMP rating 20A at 12V, 10A at 24V. Located at various points in and around the camper, pictured at the kitchen electrical panel.

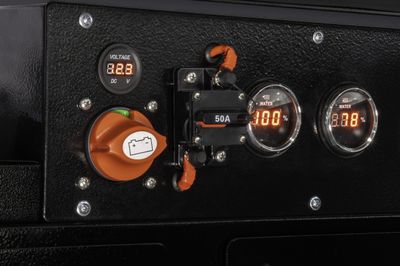

Track the voltage capacity of your batteries via an electric LED gauge in the control panel located inside the swing out kitchen cavity.

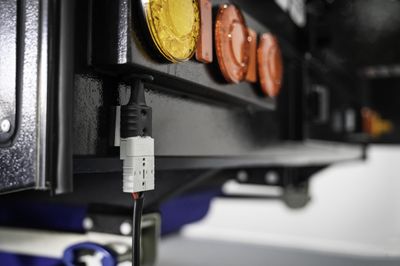

Anderson Plug for Portable Solar Connection
A dedicated connection point for rigid/flexible solar panel charging at rear of the camper. Heavy duty 50AMP connector housing with copper terminals.
